Sterilization & Pasteurization Systems

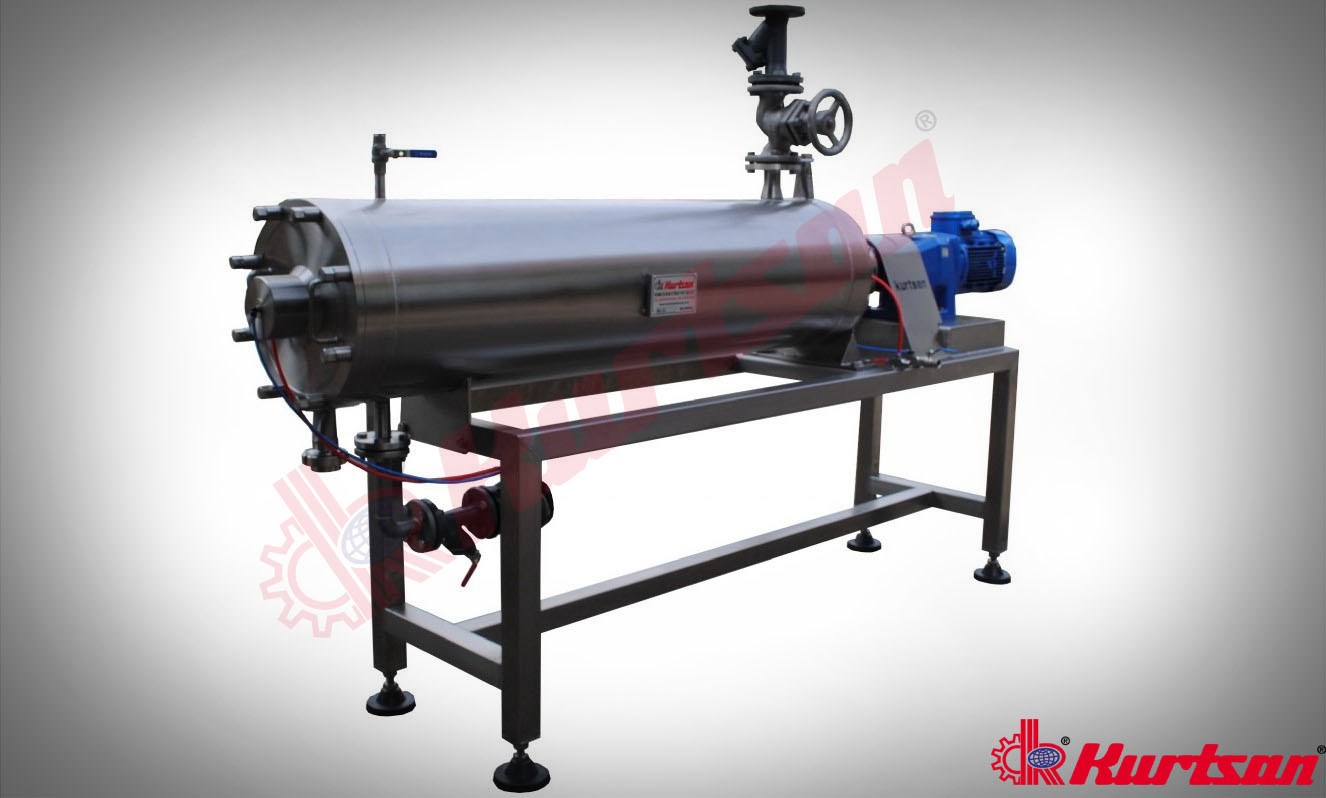

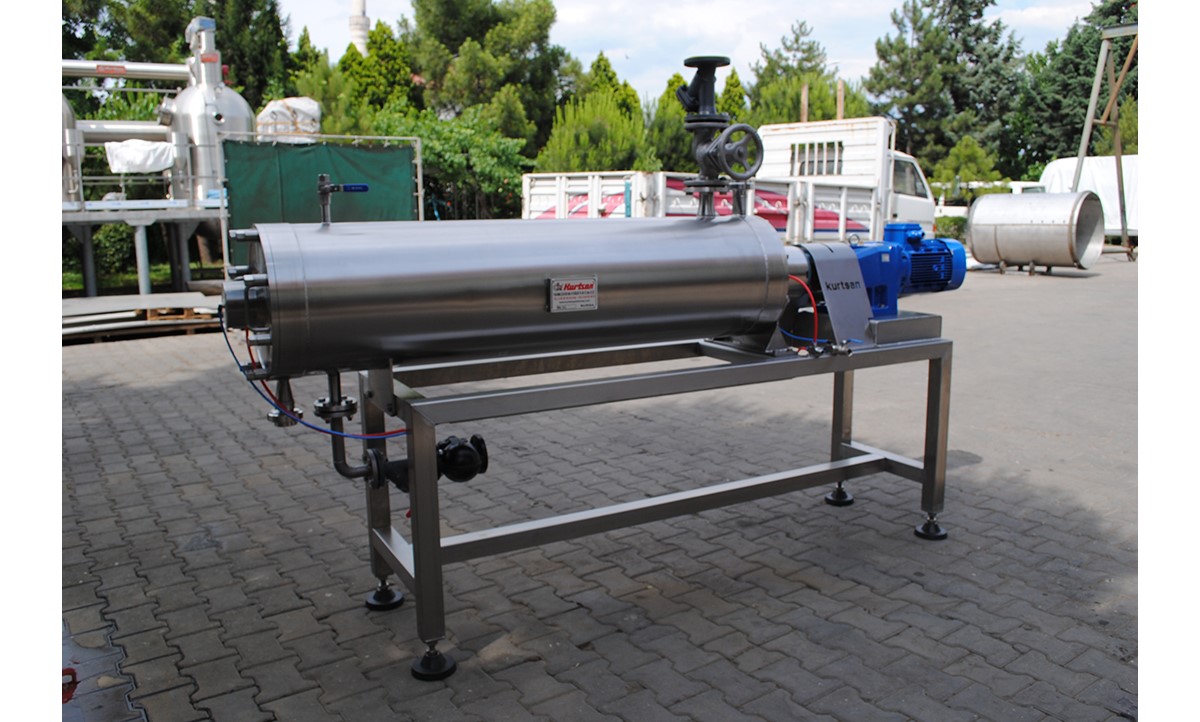

Scraped-Surface Pasteurizer and Cooler
AISI 304 stainless steel scraped-surface pasteurizer and cooler with removable Teflon scraper combs.
Request a QuoteDiscuss this equipment and your production requirements with our sales team.
Overview
The pasteurizer consists of concentric drums operating together.
The outer surface of the tubular body has a natural finish, while the inner surface is cleaned. Removable Teflon scraper combs are installed on the inner drum.
A mechanical seal assembly is used for sealing at the end sections.
The inner drum is driven by a gearmotor. The pasteurizer gearmotor is controlled by one thermal switch.
Steam is supplied to the KURTSAN Scraped-Surface Pasteurizer for preheating, and the valves and steam traps used at the steam inlet and outlet are installed on the unit.

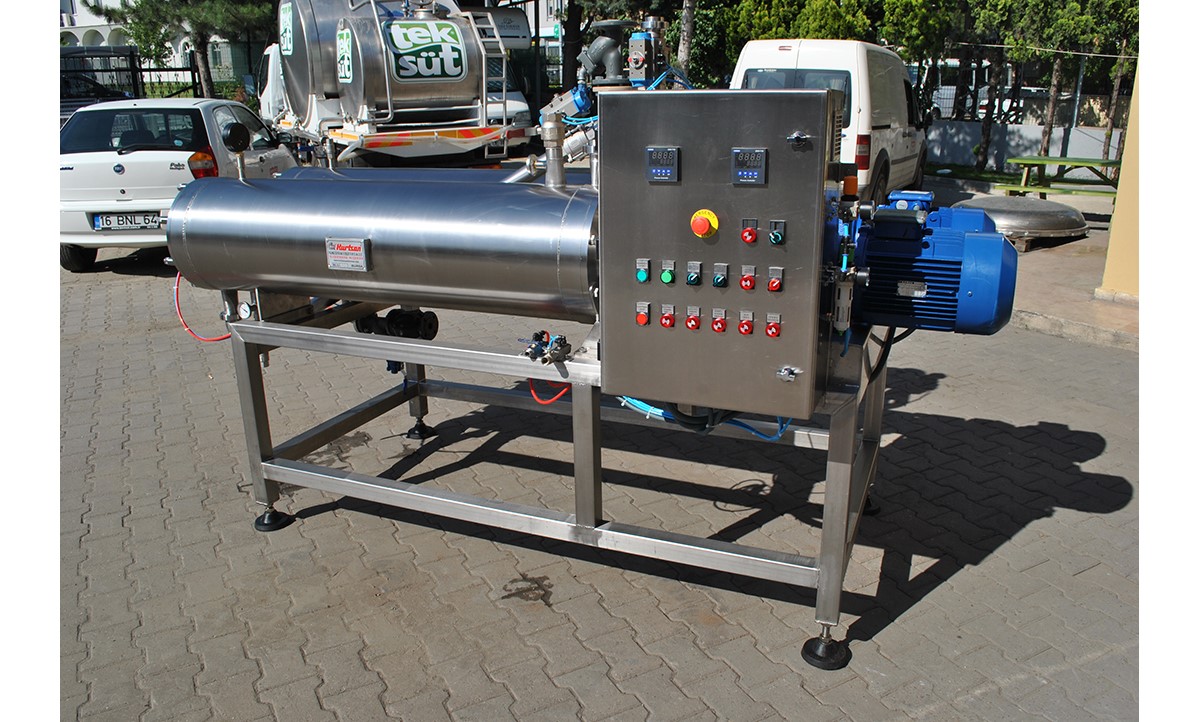

At the customer's request, the pasteurizer can be fully automated with proportional steam valve control, a PT100 temperature sensor, and control from one automation panel.
KURTSAN Scraped-Surface Pasteurizers can be manufactured as a group by increasing the number of units according to the required capacity.
Manufactured entirely from AISI 304 stainless steel.
The outer surface of the tubular body has a natural finish, while the inner surface is cleaned. Removable Teflon scraper combs are installed on the inner drum.
A mechanical seal assembly is used for sealing at the end sections.
The inner drum is driven by a gearmotor. The pasteurizer gearmotor is controlled by one thermal switch.
Steam is supplied to the KURTSAN Scraped-Surface Pasteurizer for preheating, and the valves and steam traps used at the steam inlet and outlet are installed on the unit.
At the customer's request, the pasteurizer can be fully automated with proportional steam valve control, a PT100 temperature sensor, and control from one automation panel.
KURTSAN Scraped-Surface Pasteurizers can be manufactured as a group by increasing the number of units according to the required capacity.
Manufactured entirely from AISI 304 stainless steel.
Technical Specifications
Capacity: 1–1.5 tons
Temperature range: 90–95 °C
Safety: Thermal switches
The scraped-surface design is intended for processing applications where continuous heat transfer and controlled surface scraping are relevant.\nSteam preheating, scraper combs, and scaling of units are described in the product overview.\nFinal configuration can be reviewed with Kurtsan USA for the intended process.
Temperature range: 90–95 °C
Safety: Thermal switches
The scraped-surface design is intended for processing applications where continuous heat transfer and controlled surface scraping are relevant.\nSteam preheating, scraper combs, and scaling of units are described in the product overview.\nFinal configuration can be reviewed with Kurtsan USA for the intended process.
Dimensions
Machine width: 550 mm
Machine length: 2,680 mm
Machine height: 1,330 mm
Machine length: 2,680 mm
Machine height: 1,330 mm
