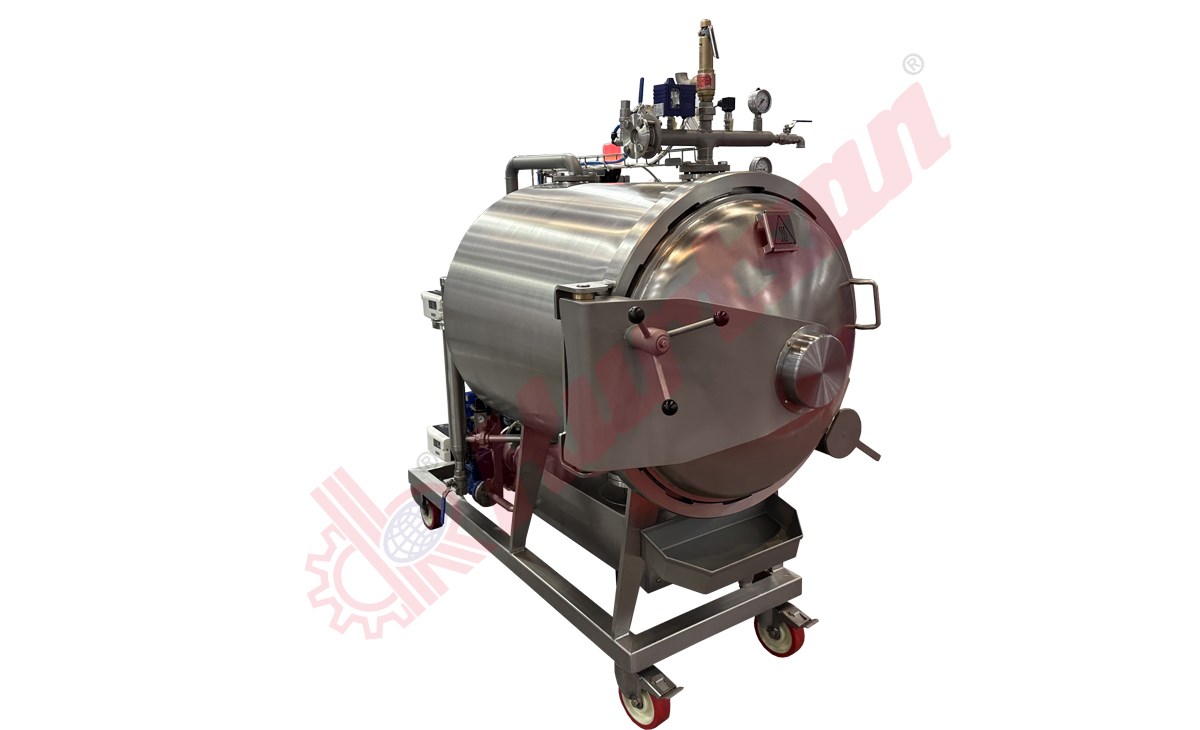

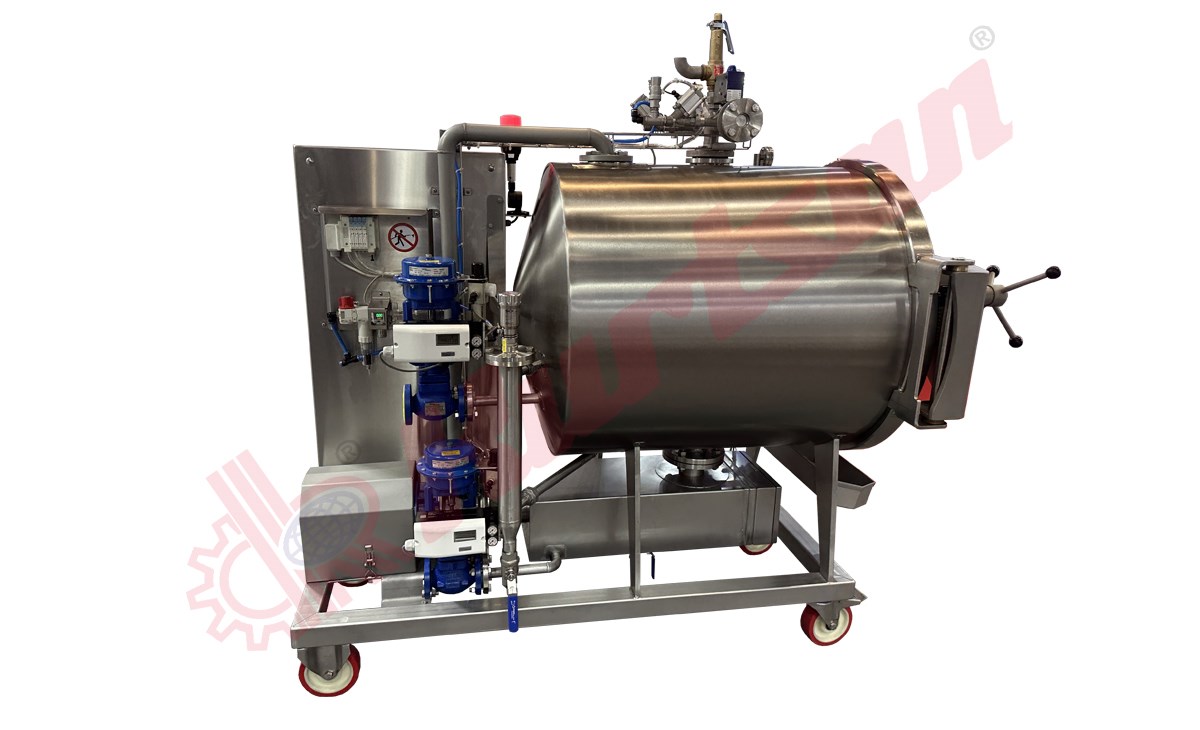

Laboratory Pilot Retort

Used for pasteurization and sterilization applications.
Material: AISI 304 stainless steel (standard); AISI 316 stainless steel (optional).
Available with heat-exchanger heating and cooling, or with direct steam heating and heat-exchanger cooling.

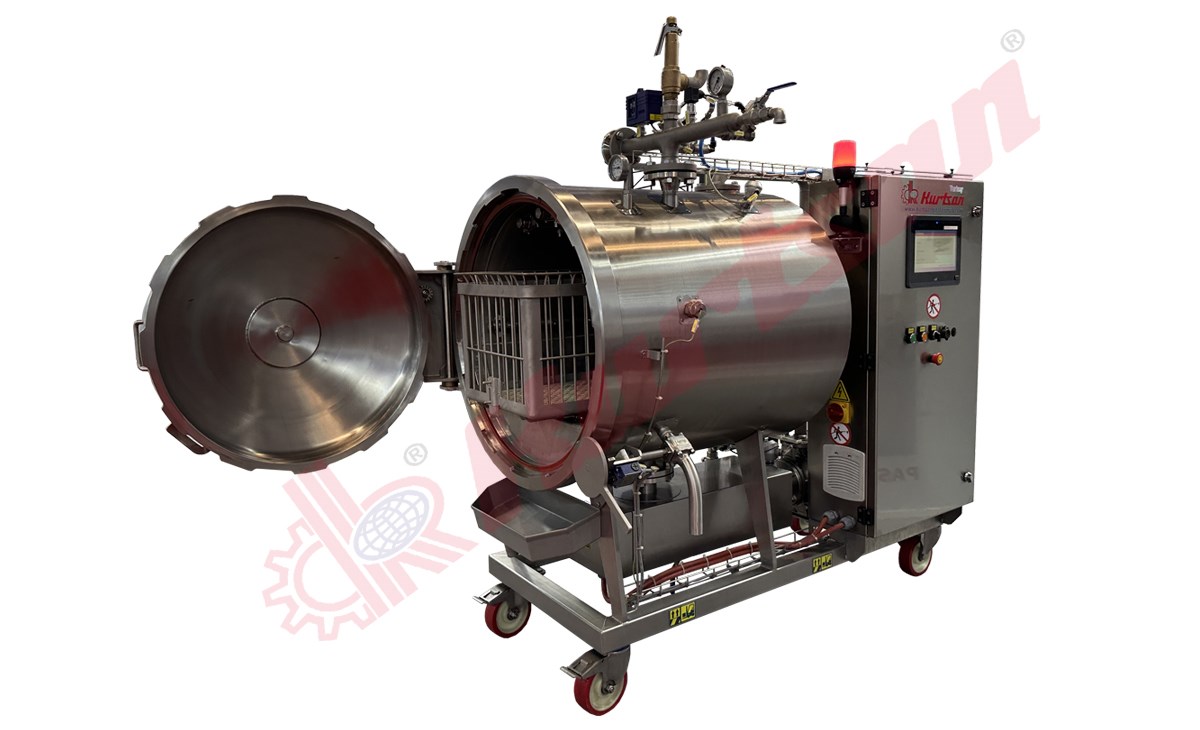

Horizontally opening door with a pneumatic locking system; available with a single or double door.
Products can be easily loaded and unloaded using the chain basket transport system.
PLC-controlled automation system.
Touchscreen LCD display for ease of use.
TUV NORD CE certified.
The retort includes a safety device that prevents pressure from increasing while the door is open and prevents the door from opening until chamber pressure has decreased to atmospheric pressure.
It also includes proportional safety valves for overpressure protection, audible and visual warning systems, and automation designed to protect the system.
The retort includes all accessories, such as proportional and on-off steam valves, a water valve, a compressed-air control valve, pressure switches, a pressure gauge, and a thermometer.

Intended for laboratory and pilot-scale process evaluation within food operations.
Can support development and testing workflows before production-line decisions are made.
Technical configuration can be discussed with Kurtsan USA according to the application.
The product overview identifies heating and cooling options, basket transport, and safety provisions for pilot applications.\nConfiguration should be reviewed around the testing objective, product, package, and process workflow.

Used for processing products in metal cans, glass jars, or special plastic containers, including:
- All types of vegetables and fruits
- Prepared meals
- Meat and meat products
- Olives
- Fish
- Pickles
- Mushrooms
- Dried tomatoes
- Specialty sauces
- Fruit juice
- Chemical and pharmaceutical manufacturing, etc.
