Sterilization & Pasteurization Systems

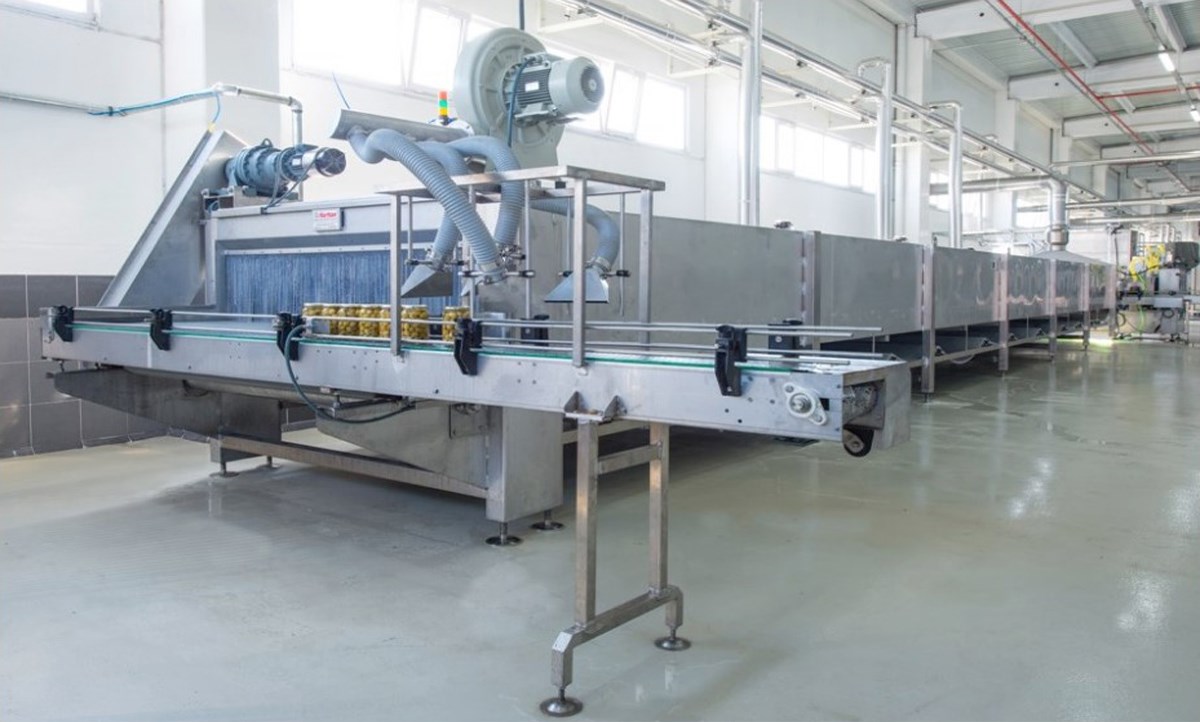

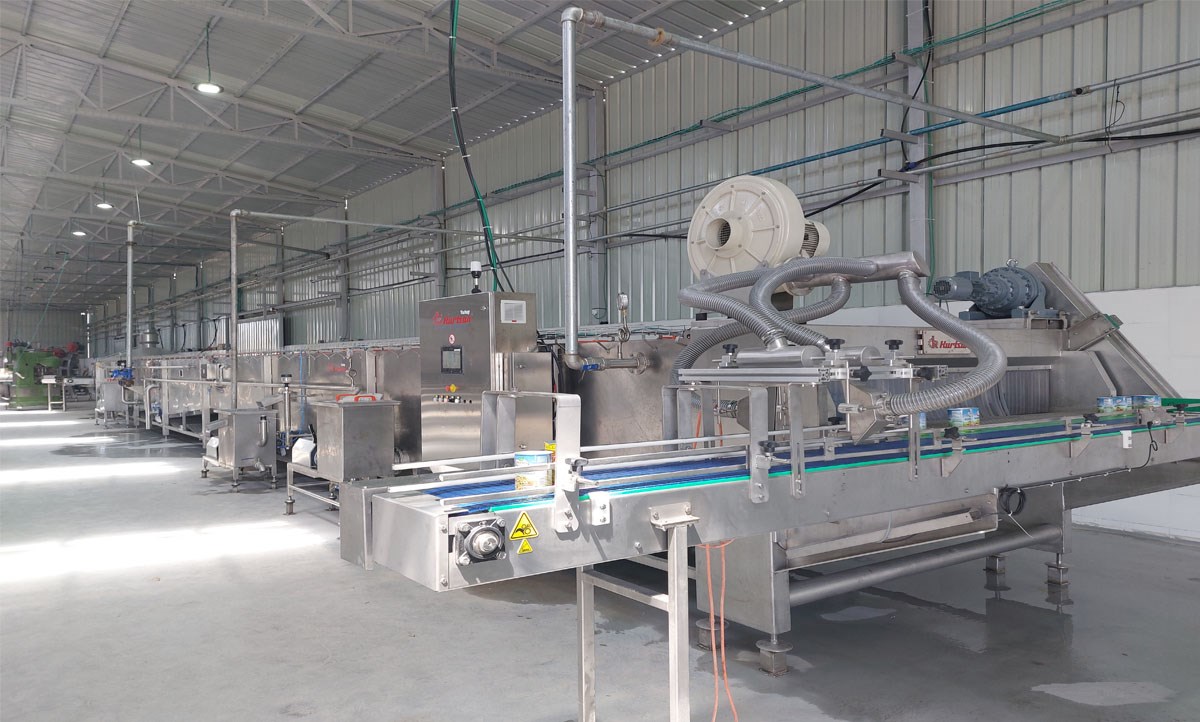

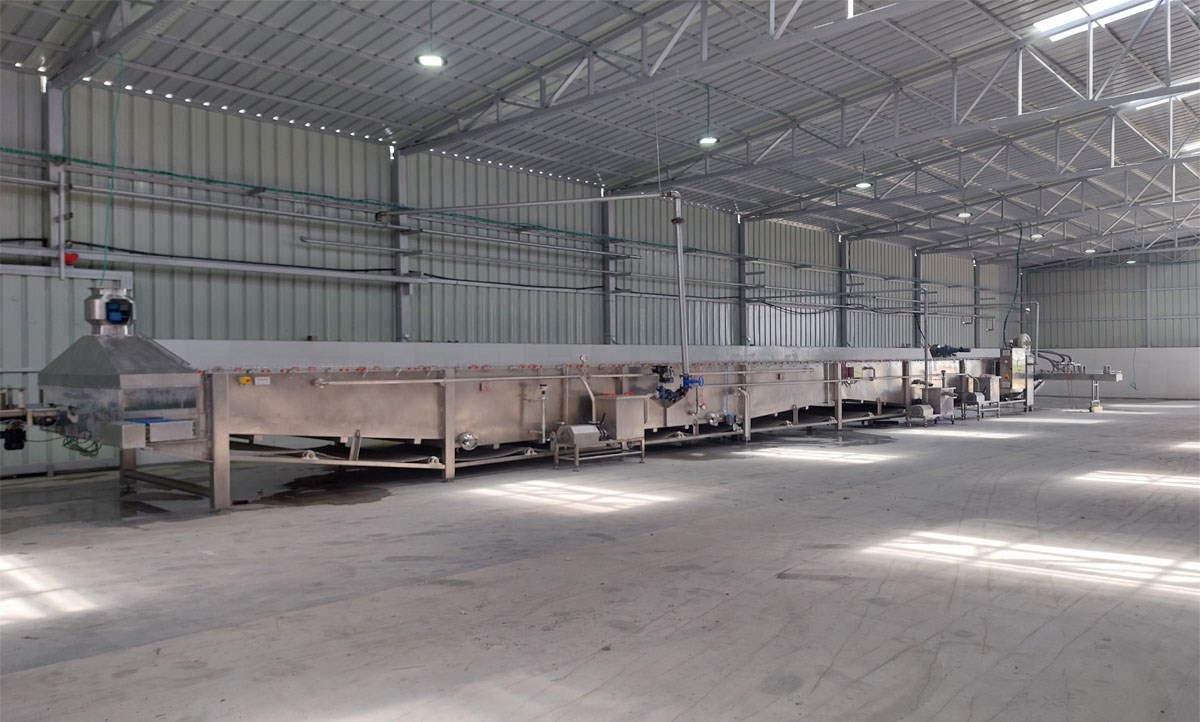

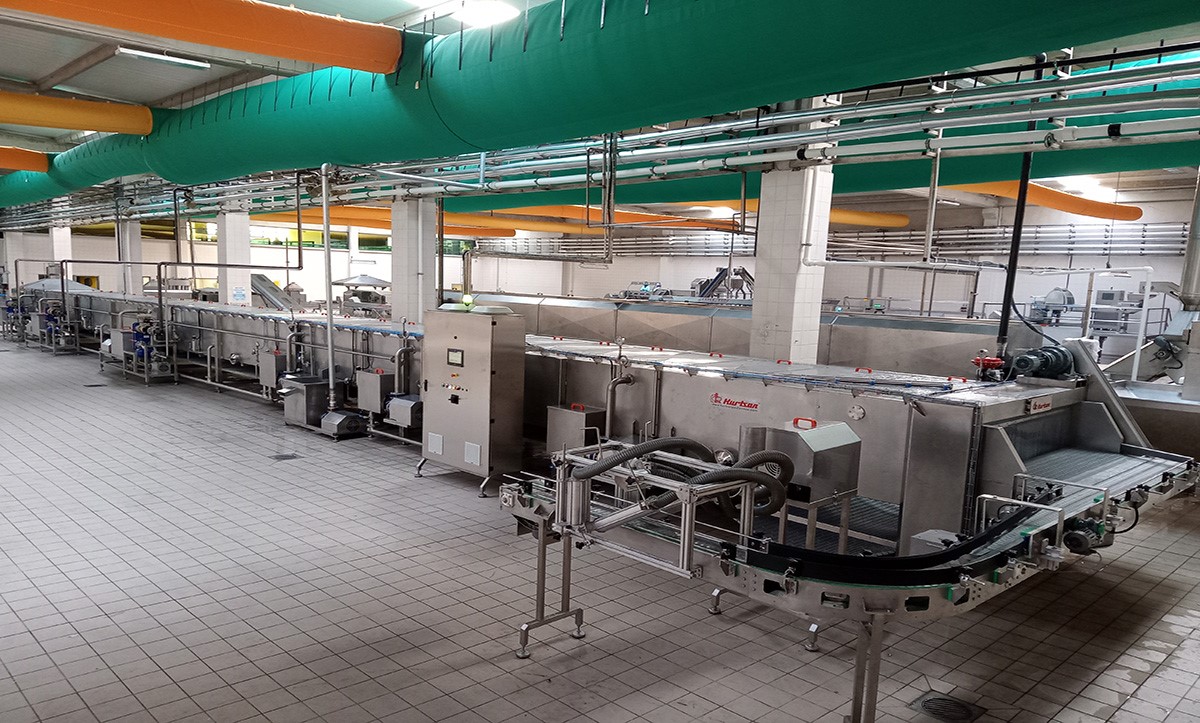

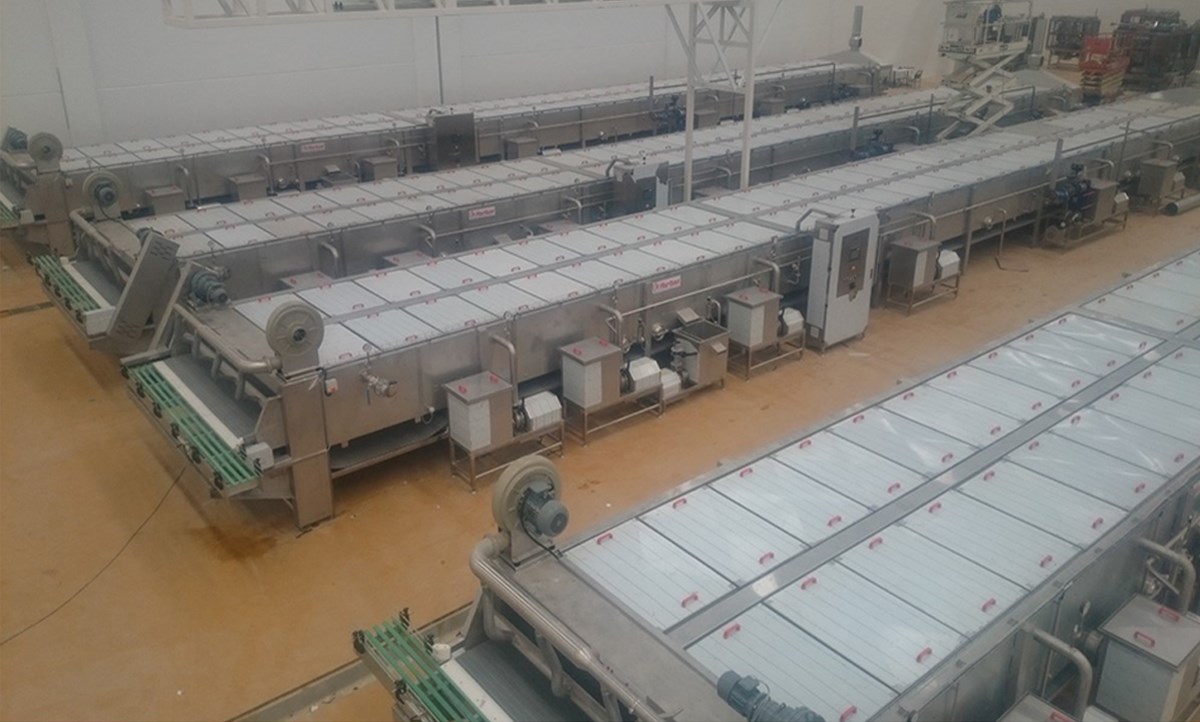

Pasteurization and Cooling Tunnel
PLC-controlled tunnel for pasteurizing and cooling hot- or cold-filled cans and jars.
Request a QuoteDiscuss this equipment and your production requirements with our sales team.
Overview
Purpose: Used for pasteurizing and cooling products in hot- or cold-filled cans or jars.
Material: Bodies are manufactured from AISI 304 material.
Conveyor: A modular-type conveyor belt is used.
Type: Spray and immersion types are available.
Control: PLC automated.
Operation: Easy operation is provided through a touchscreen LCD display.
Sections: The Kurtsan Pasteurization Tunnel consists of inlet conveyor, preheating, pasteurization, gradual cooling, precooling, cooling, and outlet conveyor sections.
Safety: The heating system operates fully automatically with proportional steam valves at steam inlets, float-type steam traps at outlets, water-level devices for the tanks, and temperature control devices.
Material: Bodies are manufactured from AISI 304 material.
Conveyor: A modular-type conveyor belt is used.
Type: Spray and immersion types are available.
Control: PLC automated.
Operation: Easy operation is provided through a touchscreen LCD display.
Sections: The Kurtsan Pasteurization Tunnel consists of inlet conveyor, preheating, pasteurization, gradual cooling, precooling, cooling, and outlet conveyor sections.
Safety: The heating system operates fully automatically with proportional steam valves at steam inlets, float-type steam traps at outlets, water-level devices for the tanks, and temperature control devices.
Technical Specifications
Water in the tanks located in the lower part of the machine is heated by plate heat exchangers and pumped from these sections through sprinklers (nozzles) onto cans or jars moving on the modular conveyor belt in the upper section.
The electrical and electronic controls of the Kurtsan Pasteurization Tunnel are managed through an automation panel using a PLC with a touchscreen display. These are economical machines with minimum operating costs, enabled by minimal human intervention and proportional controls.
Pasteurization temperatures and times are read by the PLC.
Temperature is controlled in °C and time in minutes.
Steps: A separate recipe can be prepared for each product.
The water level is controlled by level probes, can be adjusted on the display, and can be maintained at a constant level. Operating level and discharge level are controlled automatically.
The water circulation pump will pump water into the autoclave from the minimum water level through the end of the operating period, according to automatic or manual operating status.
The electrical and electronic controls of the Kurtsan Pasteurization Tunnel are managed through an automation panel using a PLC with a touchscreen display. These are economical machines with minimum operating costs, enabled by minimal human intervention and proportional controls.
Pasteurization temperatures and times are read by the PLC.
Temperature is controlled in °C and time in minutes.
Steps: A separate recipe can be prepared for each product.
The water level is controlled by level probes, can be adjusted on the display, and can be maintained at a constant level. Operating level and discharge level are controlled automatically.
The water circulation pump will pump water into the autoclave from the minimum water level through the end of the operating period, according to automatic or manual operating status.
Dimensions
Please contact us for detailed information.
