Fruit & Vegetable Processing Equipment
Chain Conveyor Pepper Roaster
Chain conveyor roasting machine for peppers and eggplant, equipped with two LPG or natural gas burners.
Request a QuoteDiscuss this equipment and your production requirements with our sales team.
Overview

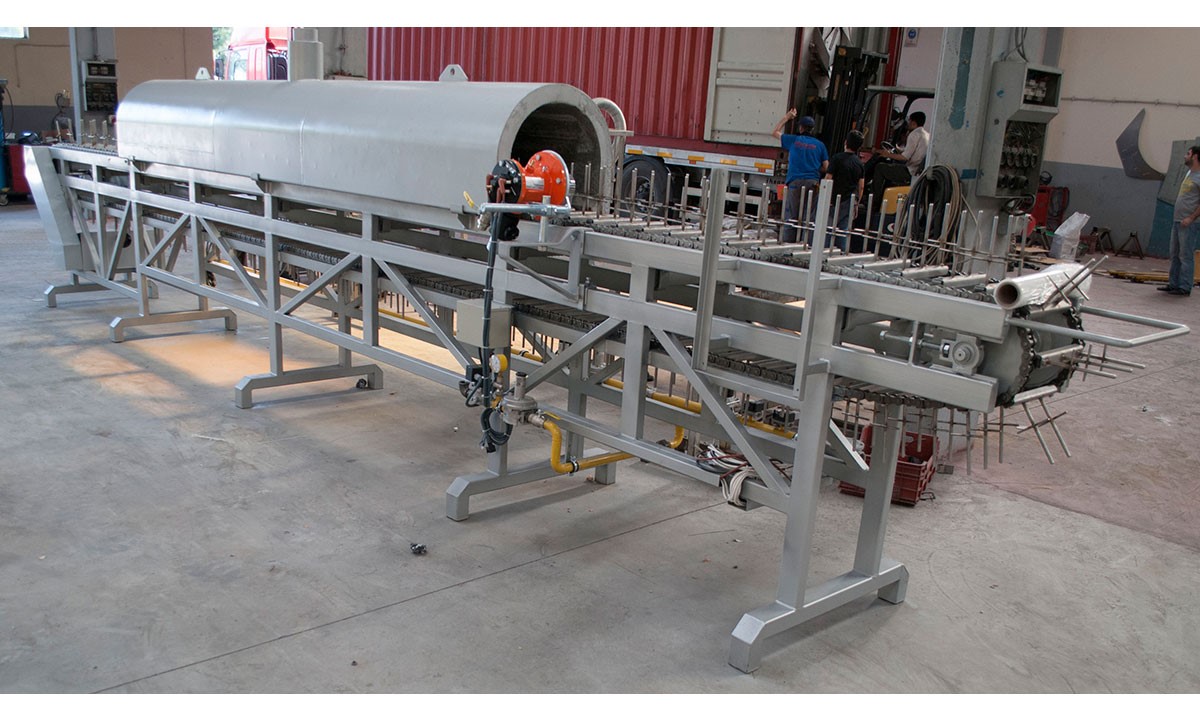

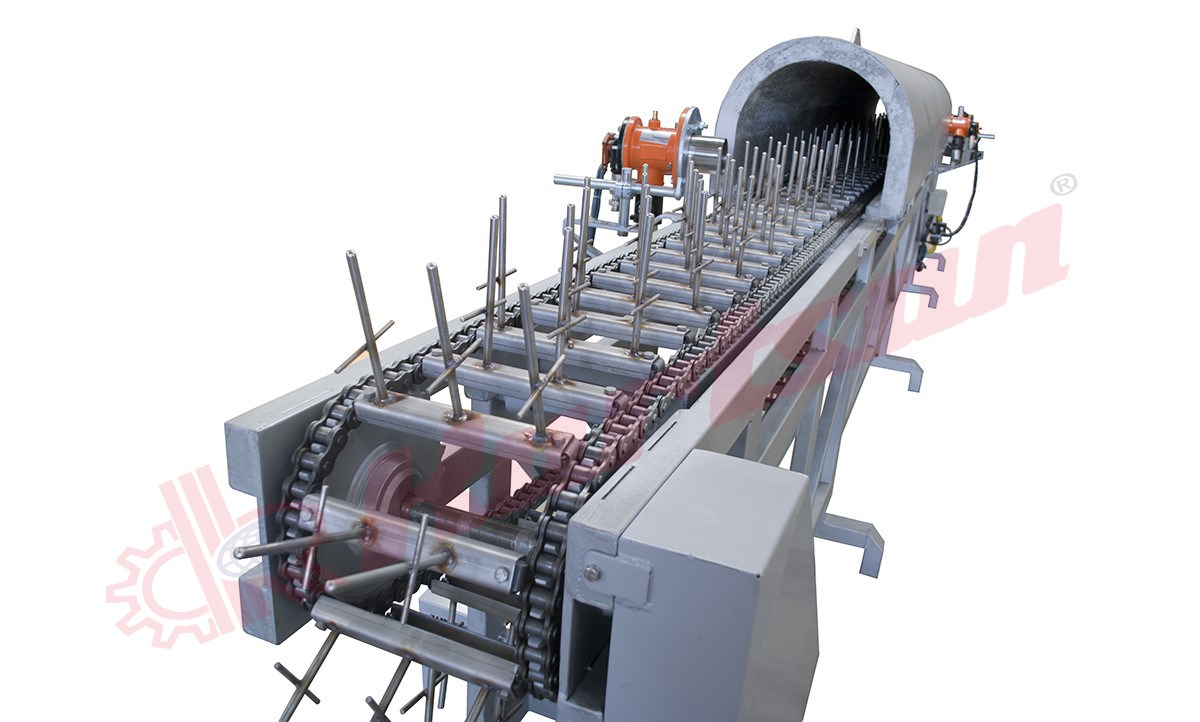

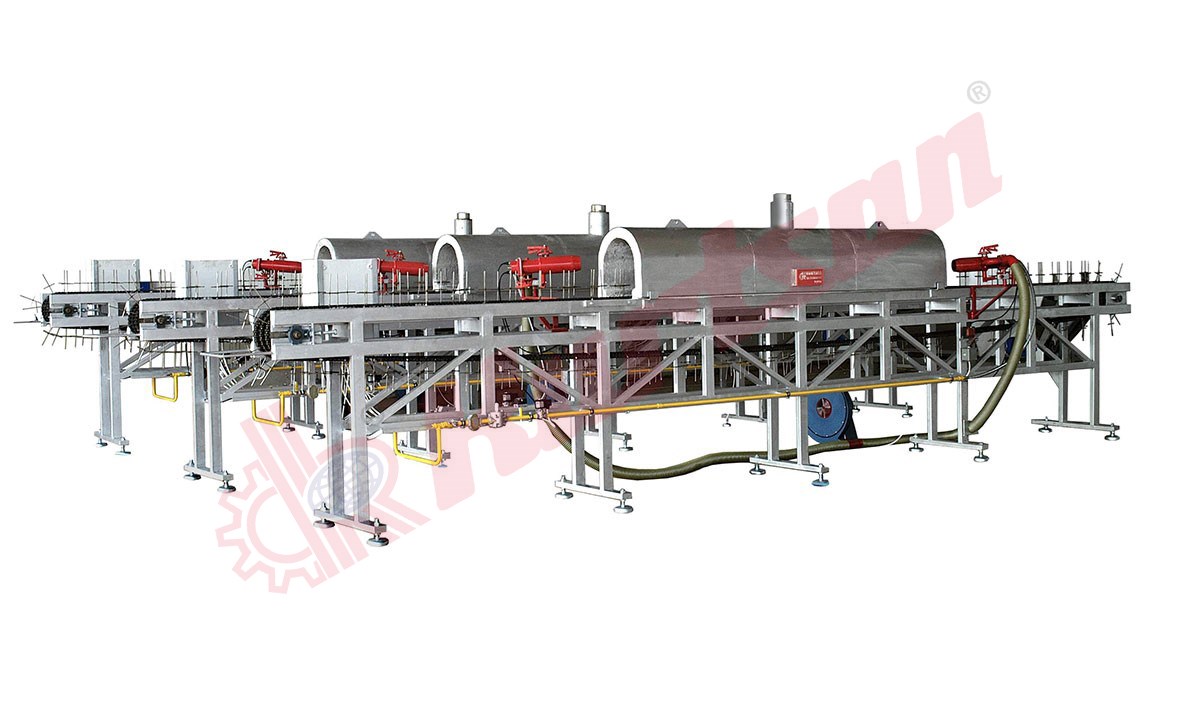

Our pepper roasting machine uses a chain conveyor system.
The frame is divided lengthwise into three sections:
• The first section is where peppers are loaded onto welded wires on the chains.
• The second section is a closed-chamber system with an interior fully coated in refractory plaster and CFB insulation beneath it.
• The third section is where the roasted peppers exit.
The roasting machine is equipped with two burners operating on LPG or natural gas. One burner is installed in the first section and the other in the second section.
Chain speed is controlled from the control panel according to the required capacity and desired quality.
The machine can also be used for roasting eggplant.
The frame is divided lengthwise into three sections:
• The first section is where peppers are loaded onto welded wires on the chains.
• The second section is a closed-chamber system with an interior fully coated in refractory plaster and CFB insulation beneath it.
• The third section is where the roasted peppers exit.
The roasting machine is equipped with two burners operating on LPG or natural gas. One burner is installed in the first section and the other in the second section.
Chain speed is controlled from the control panel according to the required capacity and desired quality.
The machine can also be used for roasting eggplant.
Technical Specifications
Intended for continuous pepper roasting within industrial processing workflows.
The product overview describes a conveyor-based arrangement and a heated roasting process.
Can be considered for pepper or eggplant applications as stated in the product overview.
Final configuration can be discussed with Kurtsan USA.
The product overview describes a conveyor-based arrangement and a heated roasting process.
Can be considered for pepper or eggplant applications as stated in the product overview.
Final configuration can be discussed with Kurtsan USA.
Dimensions
Machine Width: 360 mm
Machine Length: 6,000 mm
Machine Length: 6,000 mm
Applications
Peppers
Eggplant
Eggplant
