Pepper Cracking and Destemming Machine
Pepper cracking and destemming machine with dual PVC belt assemblies and an AISI 304 stainless steel destemming drum.
Request a QuoteDiscuss this equipment and your production requirements with our sales team.
Overview
The machine frame will be manufactured with a product infeed hopper and will measure 900 mm wide, 3,950 mm long, and 2,900 mm high from the floor. The machine frame will be manufactured from stainless steel sheet, profiles, angle iron, and U-channels with a metallic paint finish. The frame thickness is 3 mm.
The specially designed cracking section at the product inlet contains two belt assemblies operating parallel to each other and perpendicular to the floor. Peppers entering this assembly are compressed and cracked. The two belt systems are driven separately by two 1.1 kW, 1,500 rpm motors. Peppers cracked within the assembly discharge into a lower hopper and then proceed to the destemming drum.

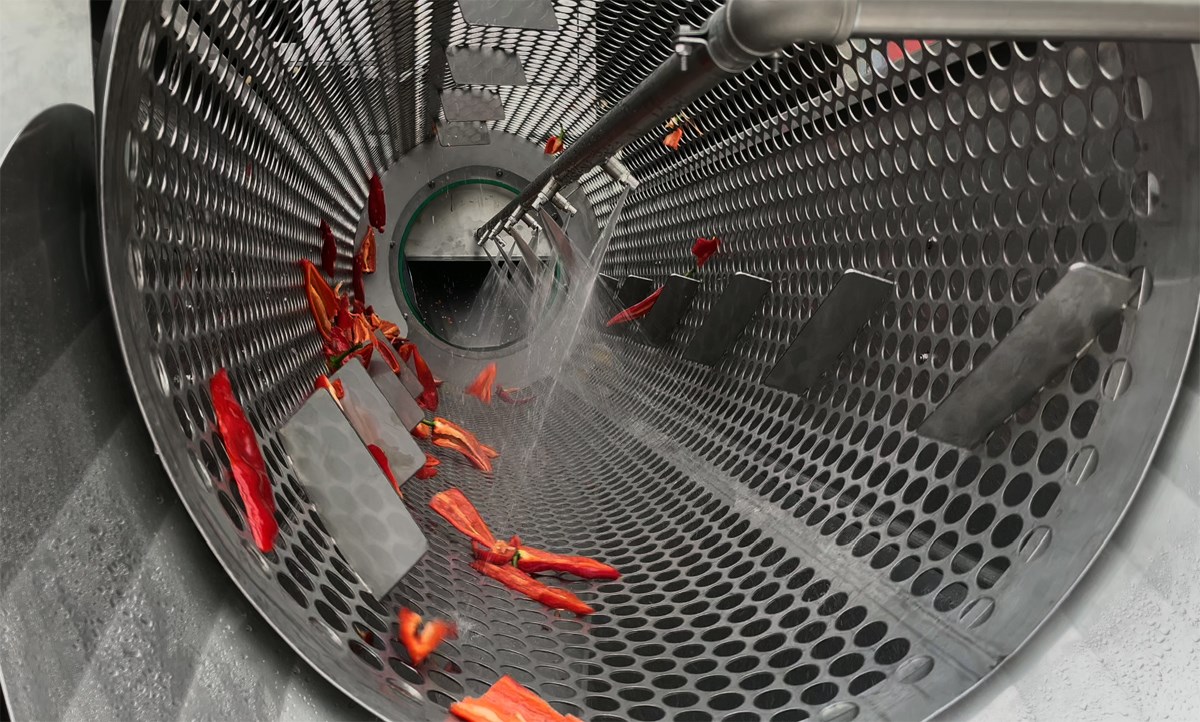

The destemming drum will be 750 mm in diameter and 3,000 mm long, with 24 mm countersunk perforations, and will be constructed entirely of AISI 304 stainless steel sheet. The drum is supported on wheels and driven by a 1.1 kW, 83 rpm gearmotor. Stems separated inside the drum fall through the existing perforations to the lower section. A collection hopper is located below, and the stems discharged into this hopper are manually removed using a plastic crate-type container.
The specially designed cracking section at the product inlet contains two belt assemblies operating parallel to each other and perpendicular to the floor. Peppers entering this assembly are compressed and cracked. The two belt systems are driven separately by two 1.1 kW, 1,500 rpm motors. Peppers cracked within the assembly discharge into a lower hopper and then proceed to the destemming drum.
The destemming drum will be 750 mm in diameter and 3,000 mm long, with 24 mm countersunk perforations, and will be constructed entirely of AISI 304 stainless steel sheet. The drum is supported on wheels and driven by a 1.1 kW, 83 rpm gearmotor. Stems separated inside the drum fall through the existing perforations to the lower section. A collection hopper is located below, and the stems discharged into this hopper are manually removed using a plastic crate-type container.
Technical Specifications
1. The machine frame is constructed from specially bent sheet metal, angle iron, and profiles.
2. The machine includes bearings in the cracking and destemming sections.
3. The cracking section includes drums mounted on 8 bearings. The destemming section includes 4 bearings.
4. The cracking drums are fitted with ribbed PVC belts for cracking peppers.
5. The cracking drums are driven by 2 motors. The destemming section includes 1 gearmotor that rotates the drum.
6. The upper inlet area of the cracking section includes 1 feed hopper.
7. The machine frame is fitted with 4 bolted legs. Foot pads are also provided beneath the legs.
2. The machine includes bearings in the cracking and destemming sections.
3. The cracking section includes drums mounted on 8 bearings. The destemming section includes 4 bearings.
4. The cracking drums are fitted with ribbed PVC belts for cracking peppers.
5. The cracking drums are driven by 2 motors. The destemming section includes 1 gearmotor that rotates the drum.
6. The upper inlet area of the cracking section includes 1 feed hopper.
7. The machine frame is fitted with 4 bolted legs. Foot pads are also provided beneath the legs.
