Fruit & Vegetable Processing Equipment

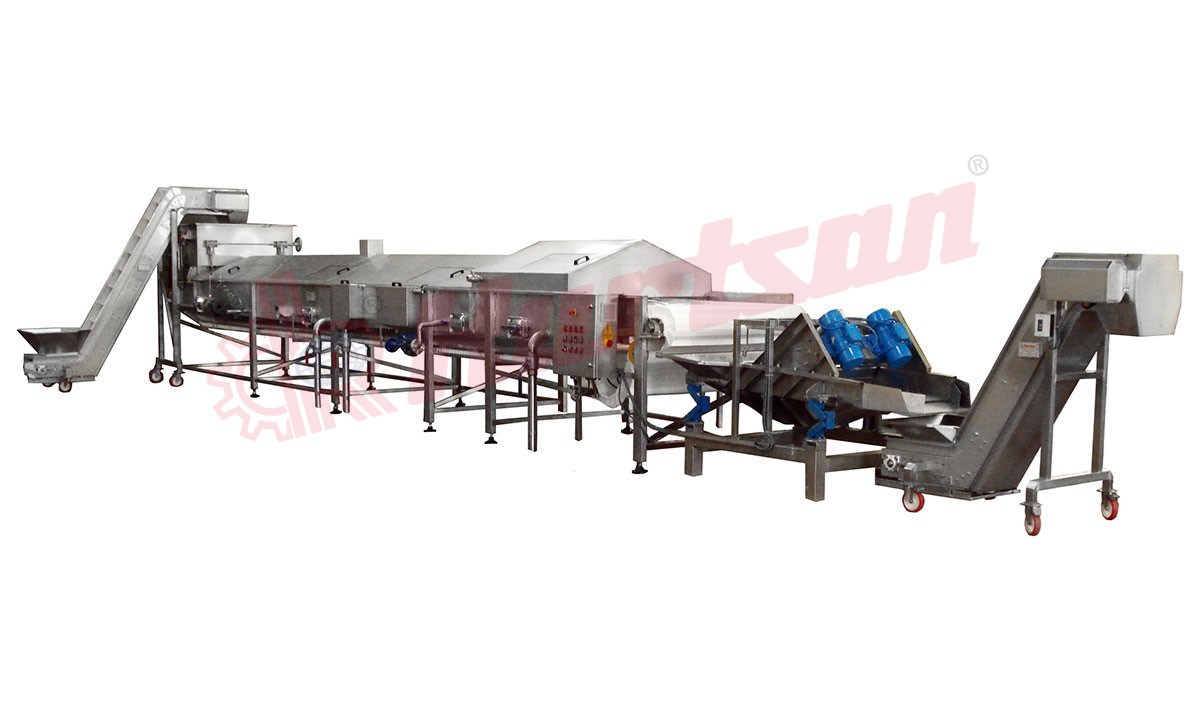

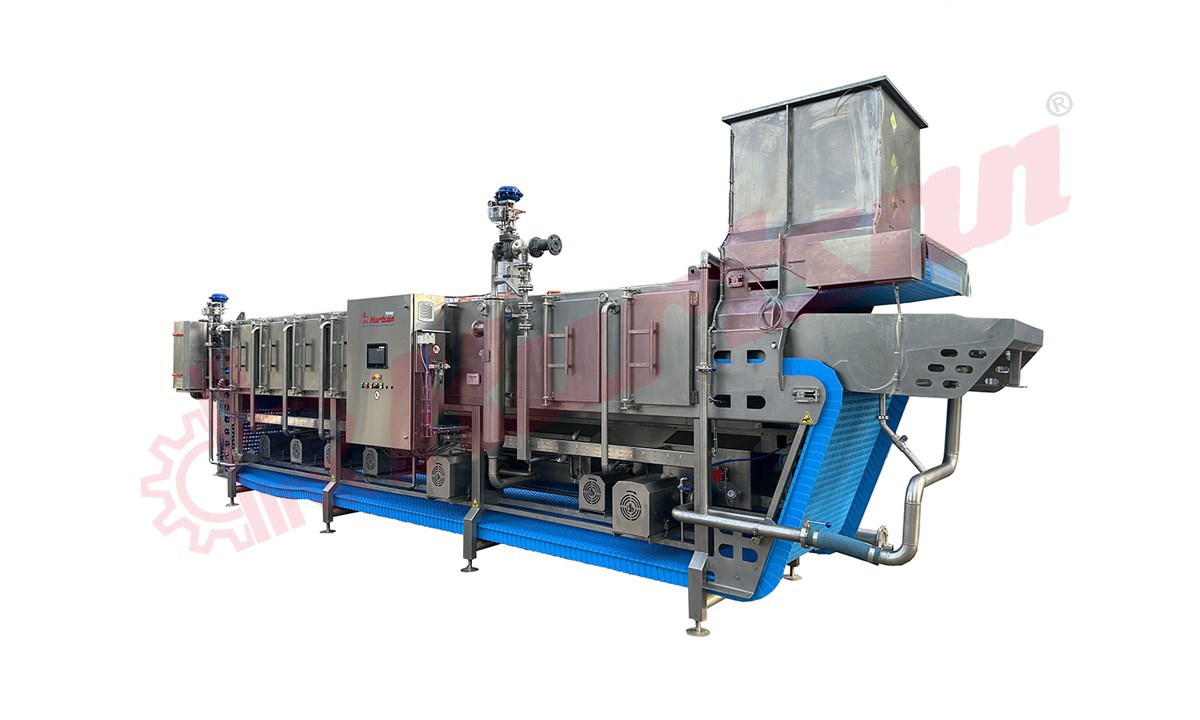

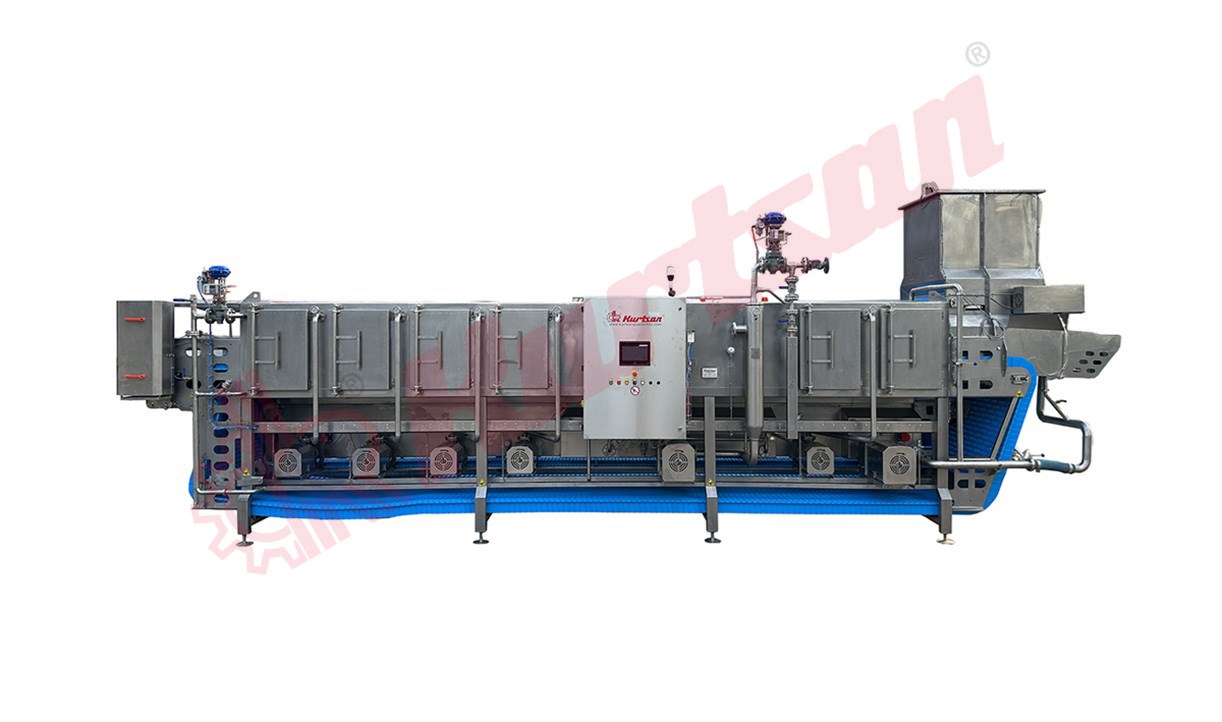

Continuous Belt Blancher
PLC-controlled continuous belt blancher for fruit and vegetable products, available in shower or immersion types.
Request a QuoteDiscuss this equipment and your production requirements with our sales team.
Overview
Purpose: Blanches products continuously conveyed on a belt.
Material: Bodies are manufactured from AISI 304 stainless steel.
Belt: A modular conveyor belt is used.
Type: Available in shower and immersion types.
Control: PLC automated.
Operation: Easy operation is provided through a touchscreen LCD display.
Sections: The Kurtsan belt-type blancher consists of infeed and feed conveyors, blanching, cooling, and discharge conveyor sections.
Safety: The heating system operates fully automatically with proportional steam valves at the steam inlets, steam traps at the outlets, water-level devices for the tanks, and temperature control devices.
Capacity: 1,200–3,000 kg/h (varies according to the product retention time in the blanching section).
Material: Bodies are manufactured from AISI 304 stainless steel.
Belt: A modular conveyor belt is used.
Type: Available in shower and immersion types.
Control: PLC automated.
Operation: Easy operation is provided through a touchscreen LCD display.
Sections: The Kurtsan belt-type blancher consists of infeed and feed conveyors, blanching, cooling, and discharge conveyor sections.
Safety: The heating system operates fully automatically with proportional steam valves at the steam inlets, steam traps at the outlets, water-level devices for the tanks, and temperature control devices.
Capacity: 1,200–3,000 kg/h (varies according to the product retention time in the blanching section).
Technical Specifications
Designed to prevent product damage in all cases, with transfer belts positioned at the lower and upper sections of the hoppers to provide a continuous, orderly product flow.
Wear-resistant friction slides are installed beneath the belt.
The machine includes the equipment required to maintain a uniform water temperature throughout.
The machine is equipped with manhole covers for access and intervention.
Machine temperature and belt speed are adjustable.
The machine's electrical control panel is manufactured to IP55 ingress-protection rating. All electrical and electronic controls are provided through the PLC.
Wear-resistant friction slides are installed beneath the belt.
The machine includes the equipment required to maintain a uniform water temperature throughout.
The machine is equipped with manhole covers for access and intervention.
Machine temperature and belt speed are adjustable.
The machine's electrical control panel is manufactured to IP55 ingress-protection rating. All electrical and electronic controls are provided through the PLC.
Applications
Olives
Peas
Corn
Beans
Chickpeas
Carrots, etc.
Peas
Corn
Beans
Chickpeas
Carrots, etc.
